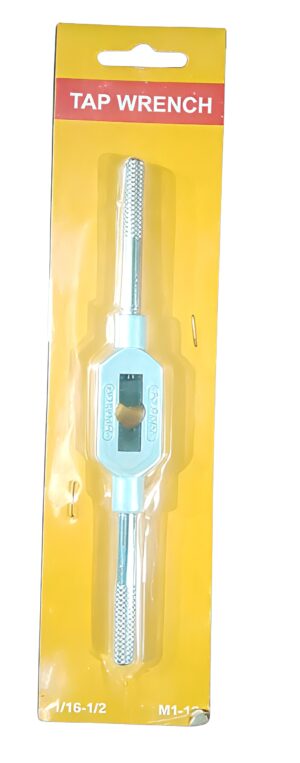

The M1–M12 Straight Handle Tap Wrench is a manual threading tool designed to firmly grip compatible taps and provide the leverage needed to cut accurate internal threads.
The wrench features an adjustable central clamping mechanism that securely holds the square drive end of the tap. Its long straight handles provide additional leverage and control, making it easier to rotate the tap through a pre-drilled hole.
With a versatile M1–M12 metric capacity and 1/16″–1/2″ imperial range, this tap wrench is suitable for a wide variety of workshop, maintenance, repair and fabrication applications.
Key Features
- Type: Straight handle tap wrench
- Metric Capacity: M1–M12
- Imperial Capacity: 1/16″–1/2″
- Adjustable tap-holding jaws
- Securely grips the square drive of compatible taps
- Long handles provide increased leverage
- Suitable for manual internal thread cutting
- Durable metal construction
- Easy to adjust and operate
- Suitable for metric and imperial tapping applications
Technical Specifications
- Product Type: Straight Handle Tap Wrench
- Metric Tap Range: M1–M12
- Imperial Tap Range: 1/16″–1/2″
- Operation: Manual
- Jaw Type: Adjustable
- Application: Internal thread cutting
- Construction: Metal
- Use: Workshop, maintenance, repair and fabrication
How It Works
The central section of the tap wrench contains adjustable clamping jaws designed to grip the square drive end of a tap.
By turning the knurled handle, the jaws open or close to accommodate the tap. Once tightened, the jaws hold the tap securely while the long handles provide leverage for turning it during the threading process.
How to Use
1. Secure the Workpiece
Firmly clamp the material you intend to thread in a suitable vice to prevent movement.
2. Insert the Tap
Open the tap wrench jaws and insert the square drive end of the appropriate tap. Tighten the wrench until the tap is held securely.
3. Align the Tap
Position the tap straight and perpendicular to the pre-drilled hole. Correct alignment is important for producing clean, accurate threads.
4. Lubricate the Tap
Apply an appropriate cutting fluid or threading lubricant to the tap and workpiece according to the material being threaded.
5. Start Cutting
Turn the tap wrench steadily in the cutting direction while maintaining proper alignment.
6. Break and Clear Chips
After approximately 1–2 turns forward, reverse the wrench slightly to help break and clear the chips before continuing. This reduces the chance of chip buildup and helps prevent the tap from binding or breaking.
Suitable For
- Metric taps from M1 to M12
- Imperial taps from 1/16″ to 1/2″
- Metalworking
- Mechanical repairs
- Engineering workshops
- Fabrication
- Machine maintenance
- Thread repair
- General workshop applications
- Suitable plastic and wood threading applications
Benefits
- Wide Size Compatibility: Accommodates a broad range of small to medium taps.
- Improved Control: Straight handles provide good leverage and control during manual tapping.
- Secure Grip: Adjustable jaws hold the tap’s square drive firmly.
- Versatile Use: Suitable for both metric and imperial tapping applications.
- Portable: Compact hand tool that can be easily stored in a toolbox or workshop.
Important Note
Always select a tap that is correctly matched to the required thread size and ensure its square drive fits securely in the wrench jaws. Use appropriate lubrication and avoid excessive force, particularly when tapping harder materials or smaller-diameter holes.
