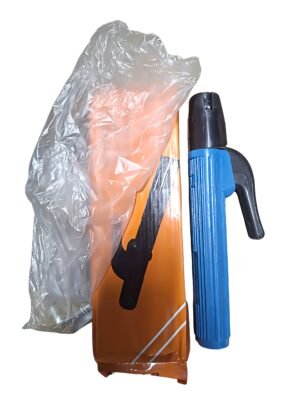

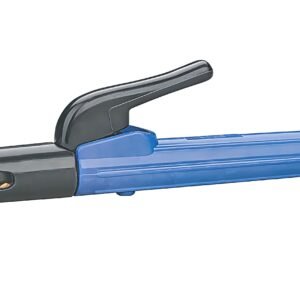

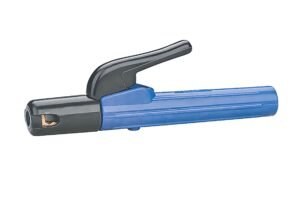

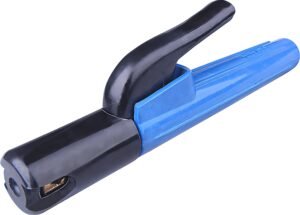

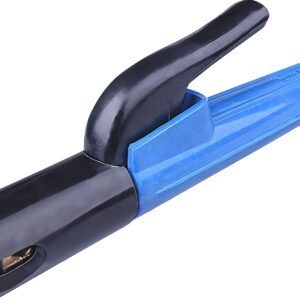

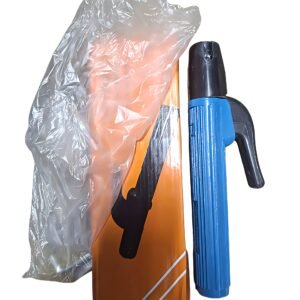

The Optimus-Style 600A Welding Electrode Holder is designed for welders and metal fabricators who need a secure way to hold and position electrodes during arc welding. Its closed-head construction helps retain the electrode, while the insulated handle provides a protective grip when the holder is correctly installed and maintained.
The holder uses a metal cable-connection block secured by set screws. The supplied installation accessories include an Allen key, two grub screws, and a metal pressure plate or shim to help secure the welding cable while reducing direct screw pressure on the copper strands.
Suitable for compatible welding machines and welding leads, this electrode holder is intended for fabrication workshops, construction sites, and metal repair operations. Confirm the manufacturer’s actual current rating and compatible cable size before use.
Key Features
- 600A Stated Current Rating: Intended for compatible heavy-duty welding applications; verify the rating on the specific product.
- Insulated Closed Head: Designed to hold the electrode and help shield the operator from contact with conductive components.
- Secure Electrode Grip: Supports electrode positioning during stick welding.
- Heavy-Duty Cable Connection: Uses an internal metal connection block with set screws.
- Cable Pressure Plate: Helps distribute clamping pressure over the exposed copper strands.
- Insulated Handle: Provides a grip for controlling the electrode holder.
- Installation Accessories Included: Allen key, two grub screws, and a metal shim or pressure plate, as described.
- MMA/SMAW Compatibility: Intended for manual metal arc or stick welding.
Applications
- Manual metal arc welding (MMA/SMAW).
- Steel fabrication and assembly.
- Construction and structural metalwork.
- Welding gates, railings, and metal frames.
- Workshop maintenance and equipment repairs.
- General stick-welding operations with compatible equipment.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Heavy-Duty Welding Electrode Holder |
| Design | Optimus-style, closed-head stinger |

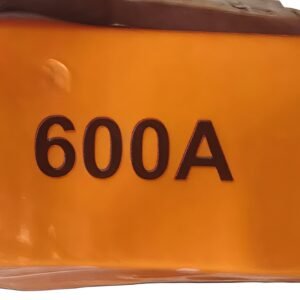

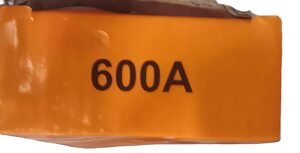

| Stated Current Rating | 600A; verify against product markings |
| Welding Process | MMA / SMAW / Stick Welding |
| Head Design | Insulated closed head |
| Handle | Insulated blue fluted handle, as described |
| Cable Connection | Internal metal block with set screws |
| Installation Tool | Allen key |
| Included Fasteners | 2 grub/set screws |
| Cable Pressure Component | Metal shim/pressure plate |
| Compatible Cable Size | Not provided; confirm with manufacturer |
| Price | ₦11,000 |
Installation Overview
- Disconnect the welding machine from its power source and ensure the welding circuit is not live.
- Slide the insulated handle onto the welding cable before attaching the cable to the holder.
- Strip the cable insulation to the length specified by the manufacturer, taking care not to damage the copper strands.
- Position the exposed copper strands and pressure plate in the cable receiver as directed by the manufacturer.
- Tighten the set screws using the supplied Allen key to secure the cable.
- Refit the insulated handle and its locking screw, then inspect the assembly for loose connections, exposed conductive parts, or damaged insulation before use.
Important: Follow the manufacturer’s instructions for cable preparation and tightening. Do not assume that every 600A-labelled holder can safely carry 600A continuously; the actual rating depends on the holder design, duty cycle, cable size, and operating conditions.
Why Choose This Electrode Holder?
The Optimus-style electrode holder combines an insulated grip, a closed-head electrode design, and a cable-clamping system with dedicated installation accessories. It is a practical option for compatible stick-welding setups used in fabrication, construction, and repair work.
