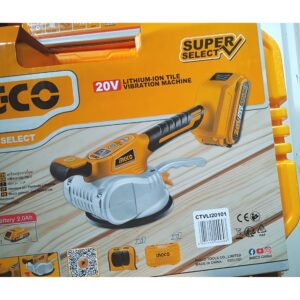

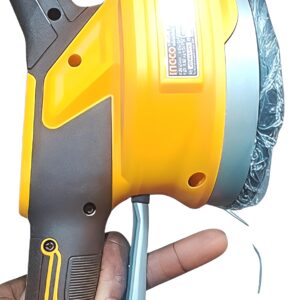

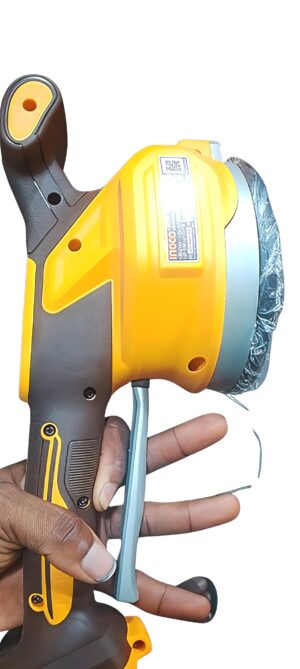

INGCO 20V Cordless Tile Vibration Machine – CTVLI20015

The INGCO CTVLI20015 Cordless Tile Vibration Machine makes tile installation faster, easier, and more consistent. The machine combines controlled vibration with a 130 mm suction cup to help hold and manipulate tiles during installation.

Once positioned on a suitable tile surface, the suction cup provides an adsorption force of up to 60 kg, while the adjustable vibration helps distribute tile adhesive more evenly underneath the tile. This can help reduce trapped air pockets and improve tile-to-adhesive contact.

The 6-speed adjustment allows the operator to select an appropriate vibration intensity for different installation situations. Its cordless 20V design also makes it convenient for use on floors, walls, and larger tile surfaces where a corded machine may be inconvenient.

Key Features

• 20V cordless operation for convenient, cable-free tile installation.
• 0–10,000 RPM vibration range for effective tile settling and adhesive distribution.
• 6-speed adjustment for better control over vibration intensity.
• 60 kg adsorption capacity for secure handling of suitable smooth tile surfaces.
• 130 mm suction cup provides a firm contact area for tile positioning.
• Helps reduce air pockets beneath tiles and improve adhesive contact.
• Ergonomic handheld design for easier operation during extended tiling work.
• Suitable for professional tile installers, contractors, and serious DIY users.
• Part of the INGCO P20S 20V cordless tool platform.

Technical Specifications

• Product: Cordless Tile Vibration Machine
• Brand: INGCO
• Model: CTVLI20015
• Battery Voltage: 20V
• Vibration Frequency: 0–10,000 RPM
• Speed Settings: 6 levels
• Adsorption Capacity: Up to 60 kg
• Suction Cup Diameter: 130 mm
• Power Source: Rechargeable lithium-ion battery
• Battery Platform: INGCO P20S
• Colour: INGCO yellow/grey

Typical Applications

The INGCO CTVLI20015 is suitable for:

• Ceramic tile installation
• Porcelain tile installation
• Wall and floor tile positioning
• Large-format tile installation
• Tile adhesive settling
• Removing trapped air beneath tiles
• Improving tile-to-adhesive contact
• Professional construction and renovation work

How It Works

1. Apply the appropriate tile adhesive to the prepared surface.
2. Position the tile correctly.
3. Place the machine’s suction cup firmly on the tile surface.
4. Engage the suction mechanism to secure the machine.
5. Select the required vibration speed.
6. Apply controlled vibration to help settle the tile into the adhesive and reduce air pockets.
7. Check the tile alignment and level before the adhesive sets.

Package / Configuration

Depending on the supplied package, the CTVLI20015 may include:

• 1 × CTVLI20015 cordless tile vibration machine
• 1 × 20V 2.0Ah battery pack
• 1 × Charger
• Kneepads
• Putty trowel
• Tile spacer sets
• Carrying/storage packaging
