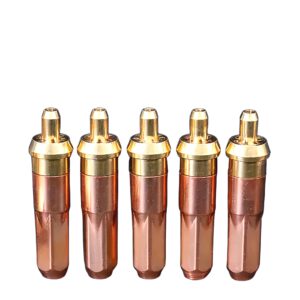

The G01-30 / G03-30 Gas Cutting Nozzles are designed to direct the preheating flame and cutting oxygen jet during oxy-fuel metal-cutting operations. They are suitable for compatible gas cutting torches used in workshops, fabrication facilities and industrial maintenance environments.
The copper-based construction helps conduct heat away from the nozzle tip during operation. The nozzle’s internal passages are designed to support the controlled delivery of fuel gas, oxygen and the cutting oxygen stream, depending on the specific nozzle design.
Common applications include cutting steel plates, preparing metal components for fabrication and carrying out repair work. These nozzles are typically available in different sizes to suit different material thicknesses and cutting requirements.
Compatibility note: Confirm whether the nozzle is a G01-30 or G03-30 type, its size, and the compatible torch model before ordering. These designations should not be assumed interchangeable.
Key Features
- Product Series: G01-30 / G03-30, subject to confirmation.

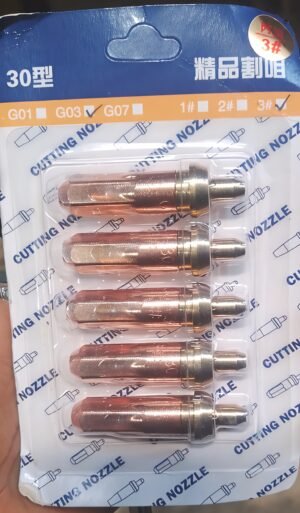

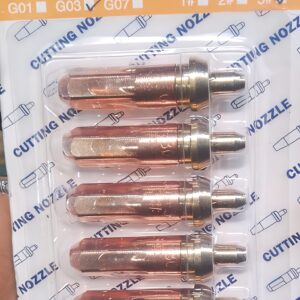

- Size: Marked or described as Size 3#.
- Copper-Based Construction: Supports heat transfer and thermal conductivity.
- Oxy-Fuel Cutting: Designed for compatible gas cutting torches.
- Precision Gas Passages: Help direct the preheating flame and cutting oxygen.
- Workshop Applications: Suitable for appropriate metal-cutting and fabrication tasks.
- Replacement Accessory: Useful for replacing worn or damaged compatible cutting nozzles.
Applications
- Steel plate cutting.
- Metal fabrication and processing.
- Welding and fabrication workshops.
- Industrial maintenance and repair.
- Preparation of metal components for welding.
- General oxy-fuel cutting operations on suitable metals.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Oxy-Fuel Gas Cutting Nozzle |
| Series | G01-30 / G03-30 |
| Size | 3# as described; verify package marking |
| Material | Copper-based construction; exact alloy composition not confirmed |
| Torch Compatibility | Depends on nozzle series and torch model |
| Fuel Gas | Acetylene or propane only if specified for the exact nozzle |
| Cutting Capacity | Not provided; depends on nozzle design and manufacturer specifications |
| Package Quantity | Not provided |
| Brand | Not provided |
| Country of Origin | Not provided |
Cutting Capacity
The cutting capacity for Size 3# has not been confirmed. The suitable steel thickness and recommended operating pressures depend on the exact nozzle model, fuel gas, torch design and manufacturer’s cutting chart. Refer to the manufacturer’s specifications rather than relying on the size marking alone.
Why Choose G01-30 / G03-30 Cutting Nozzles?
These cutting nozzles are practical replacement accessories for compatible oxy-fuel cutting equipment. Their copper-based construction and purpose-designed gas passages support the controlled heating and cutting process required for steel fabrication and repair work.
Safety Information
- Use only with a compatible torch and the specified fuel gas.
- Follow the manufacturer’s recommended oxygen and fuel-gas pressures.
- Inspect the nozzle for damage, blockage or worn openings before use.
- Use suitable eye protection, welding gloves and flame-resistant clothing.
- Keep flammable materials away from the cutting area.
- Use appropriate flashback protection and follow safe gas-cylinder handling procedures.
